Edge Banding Machine

JHM-365A

Input Voltage 380V (220、400V、415V VVetc)
Edge Thickness 10-50mm
Edge Width 0.4-2 mm
Feeding Speed 14m/min
Dimension 2700/800/1500mm
Net Weight 700KG

https://youtu.be/Q6HEslCp8r0

  • Compact industrial design + full process integration, suitable for high-efficiency production with limited space.

  •  The addition of a fine finishing process and a high-speed power unit ensures the edge banding precision of high-end panels.

  • Strong compatibility and stable operation, suitable for mass production of multiple product categories.


Make a request

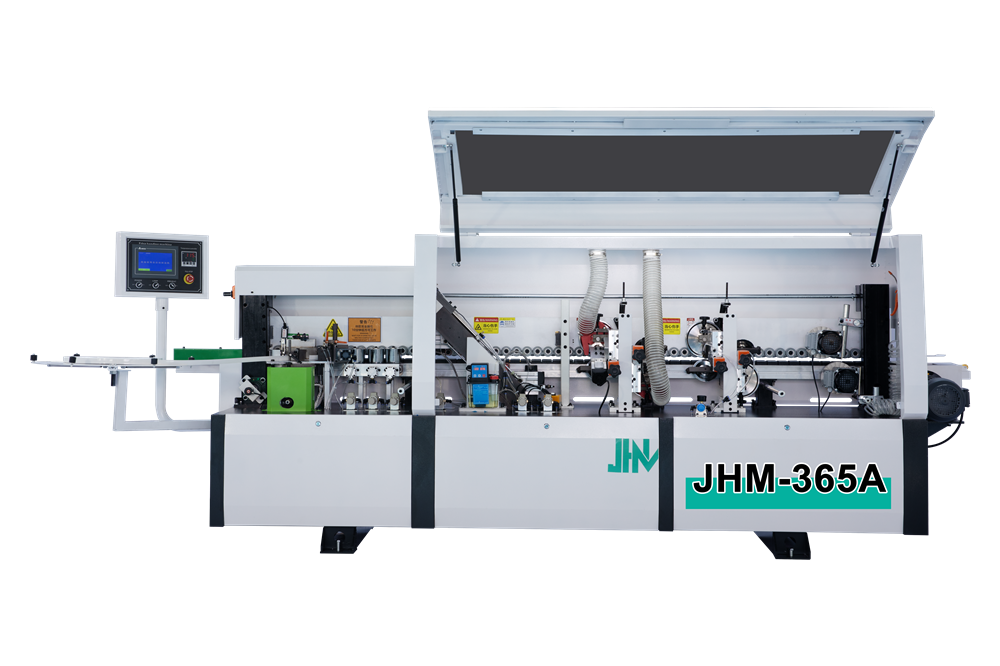

Product Front
Product Left Side

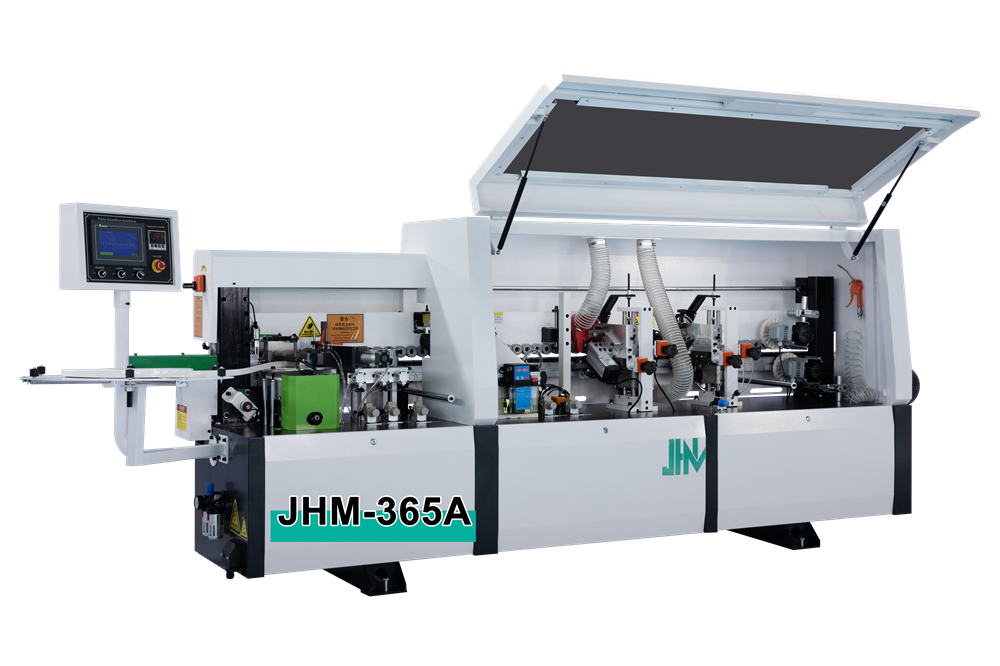

Product Right Side
Gluing

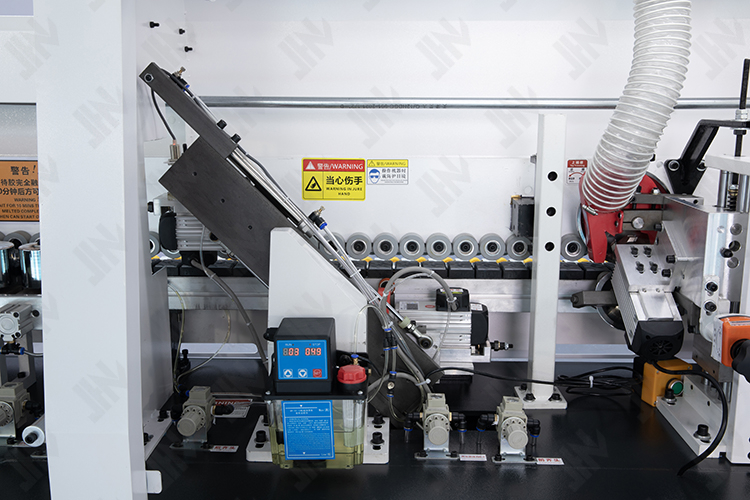

End Cutting

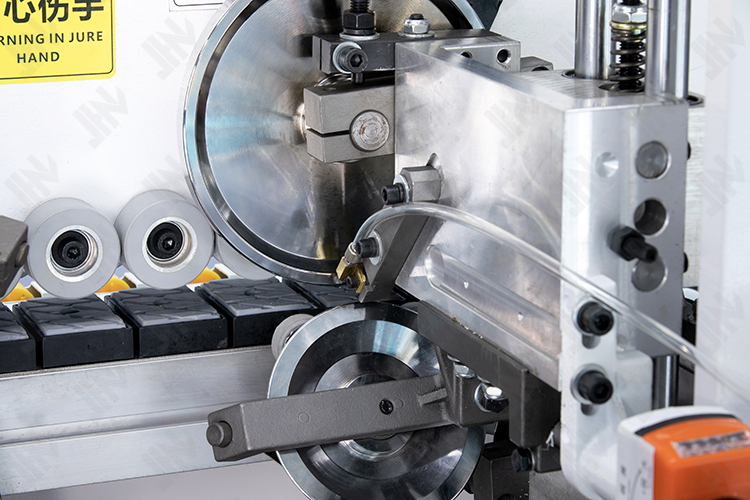

Fine Trimming

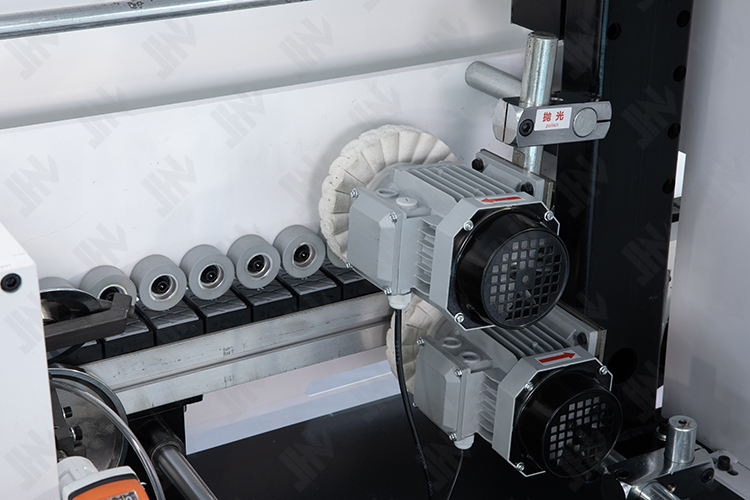

Buffing
Product Front
Product Left Side
Product Right Side
Gluing
End Cutting
Fine Trimming
Buffing

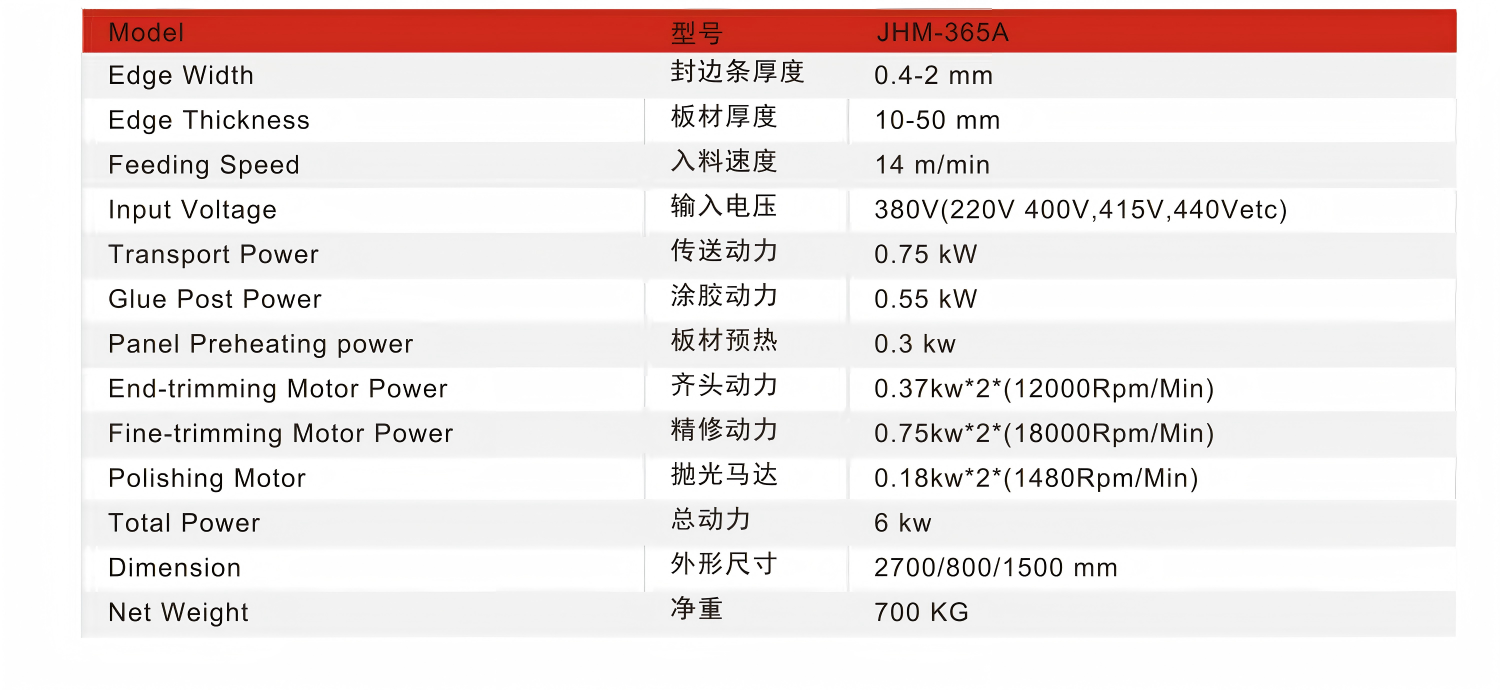

Technical Specifications
