Edge Banding Machine

JHM-365Y

Input Voltage 380V (220VVetc)
Edge Thickness 12-50mm
Edge Width 0.4-2 mm
Feeding Speed 20m/min
Dimension 3680/925/1560mm
Net Weight 1200KG

  • JHM-365Y has the functions of pre-milling, gluing, press,end cutting, fine trimming and buffing

  • Compact industrial design + full process integration, suitable for high-efficiency production with limited space.

  • The addition of a fine finishing process and a high-speed power unit ensures the edge banding precision of high-end panels.

  • Strong compatibility and stable operation, suitable for mass production of multiple product categories.

Make a request
Product Front

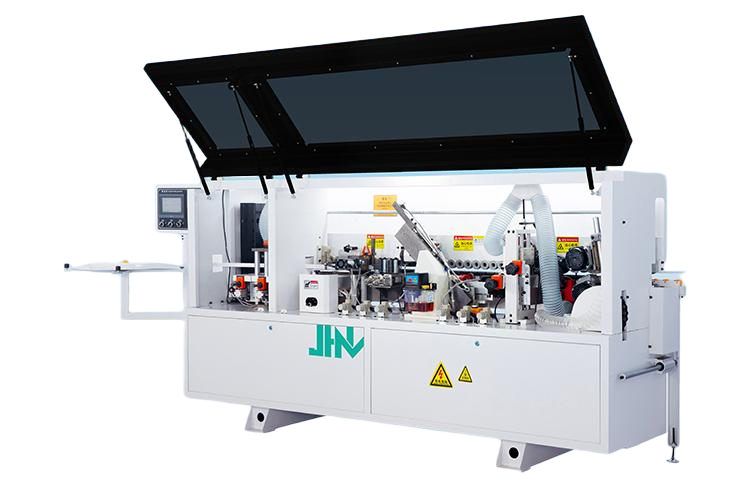

Product Left Side

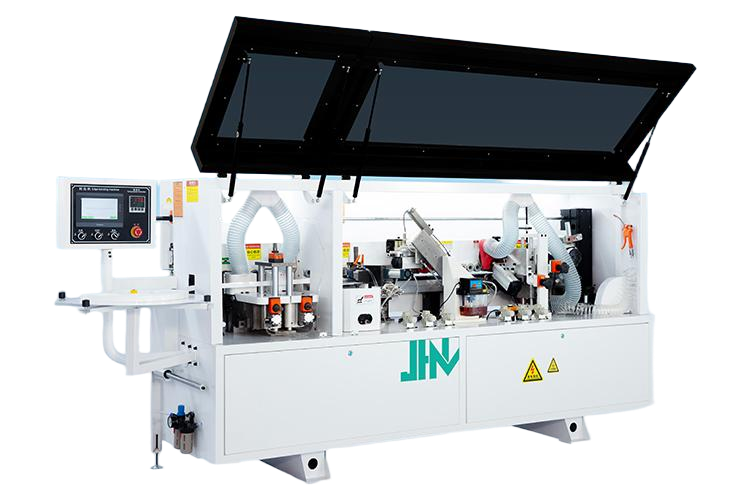

Product Right Side

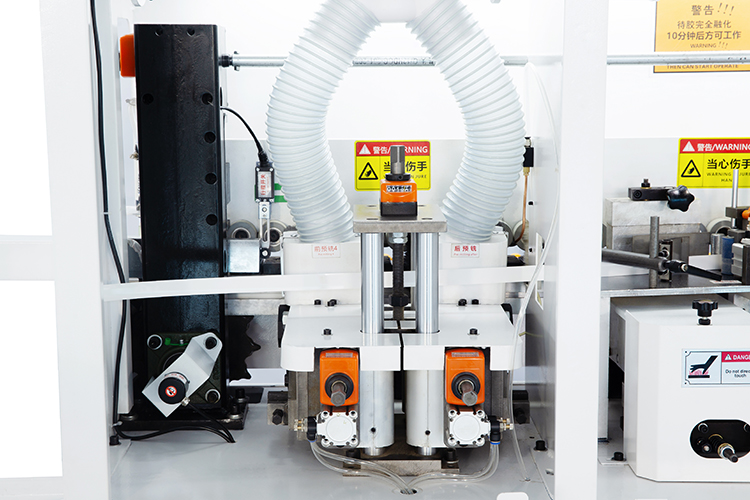

Pre-milling

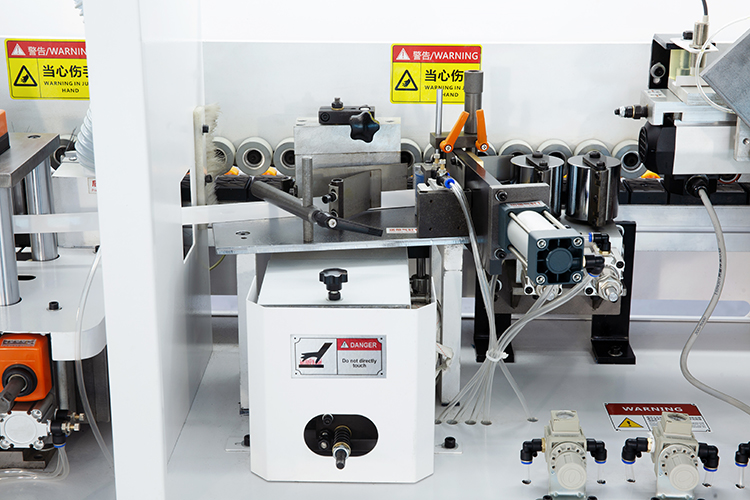

Gluing

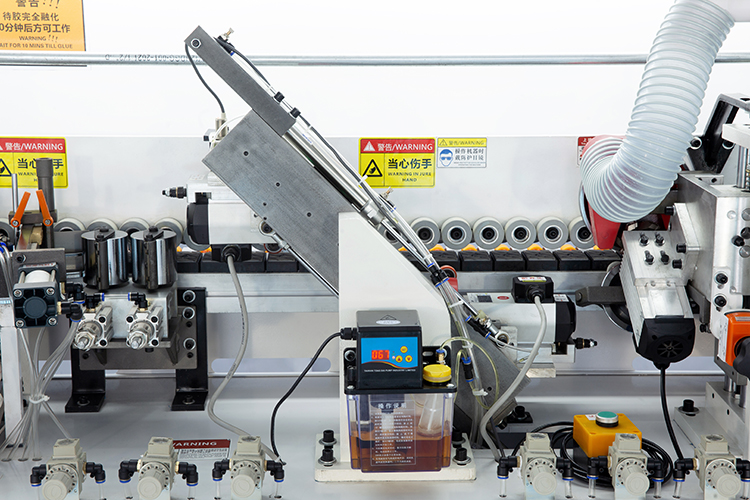

End Cutting

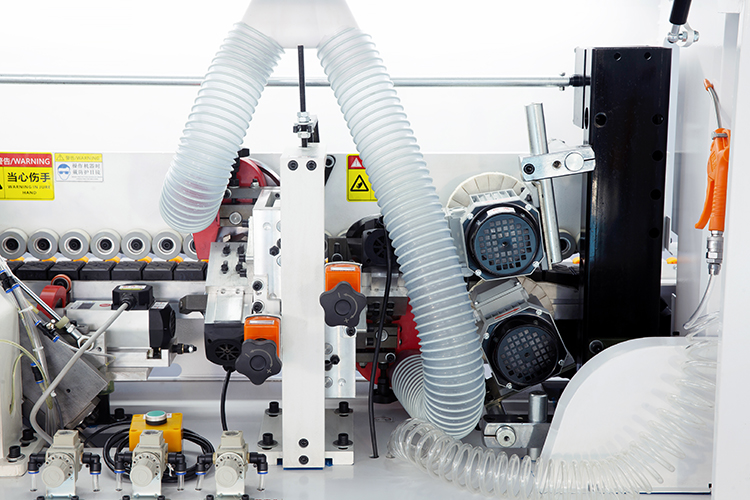

Fine Trimming

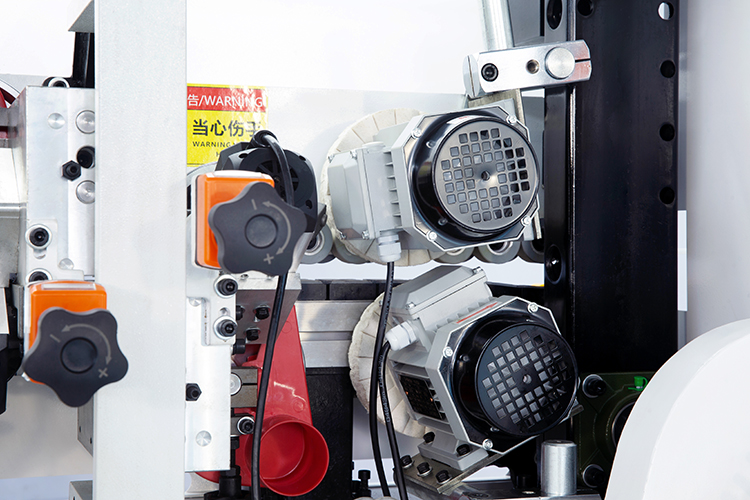

Buffing
Product Front
Product Left Side
Product Right Side
Pre-milling
Gluing
End Cutting
Fine Trimming
Buffing

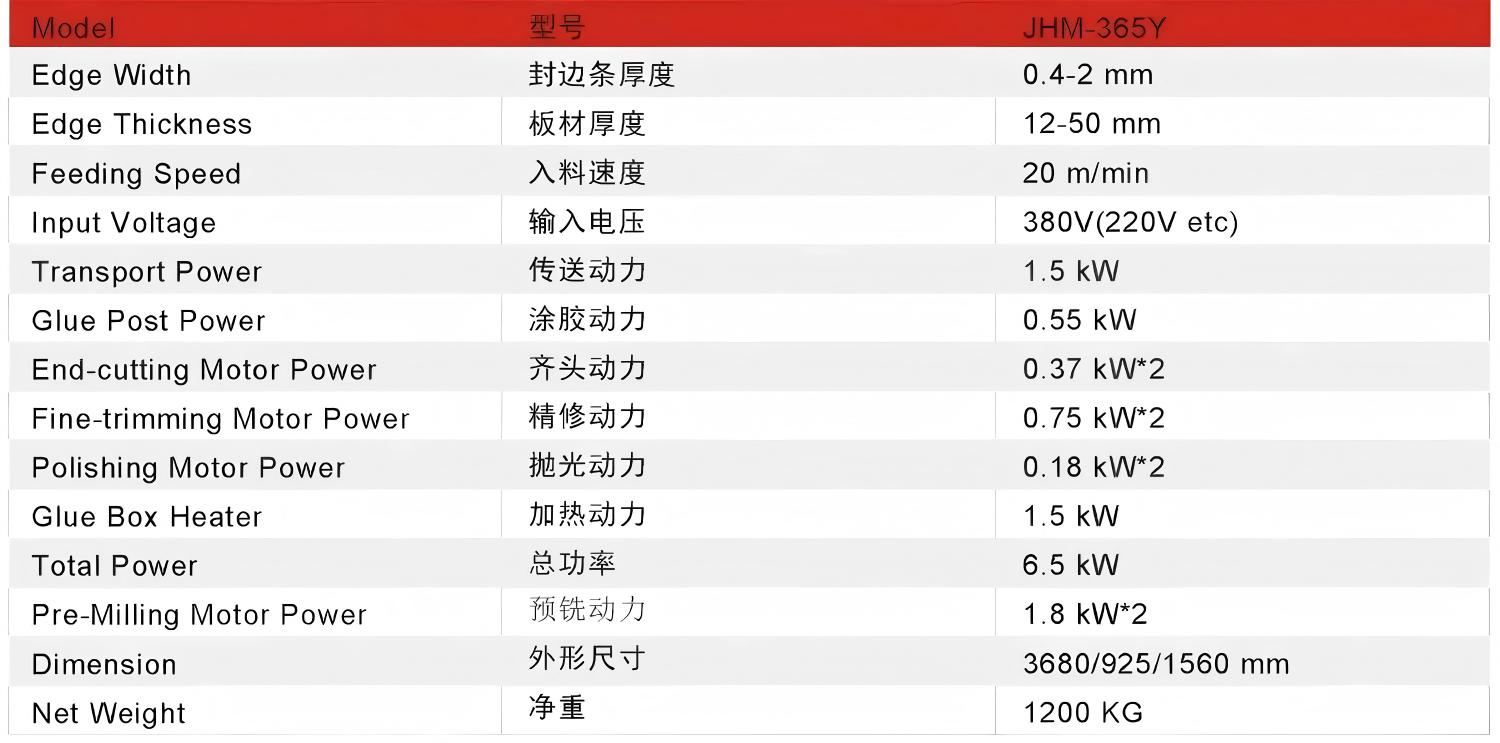

Technical Specifications
